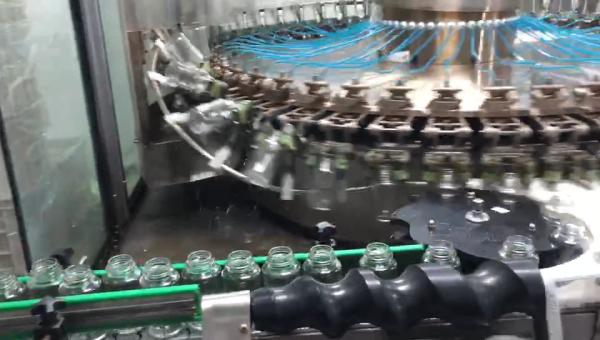

good quality factory auto rotary bottle washing machine cleaning machine rinsing machine for jar of jam
Tel/whatsapp/wechat:008615621625363email:liquidfiller@tongda-jixie.com
Grace liu
GCP-30 30heads automatic glass bottle washer for fruit juice
Model | heads quatities | max capability(BPH) | power | applicated bottle height | diameter | water consumption |
GCP-16 | 16 | 3000 | 1.5 | 100-360 | 25-100 | 0.7 |
GCP-18 | 18 | 3000-4000 | 2 | 100-360 | 25-100 | 2.1 |
GCP-24 | 24 | 5000-6000 | 2.85 | 100-360 | 25-100 | 2.6 |
GCP-30 | 30 | 7000-9000 | 3.6 | 100-360 | 25-100 | 3 |
GCP-48 | 48 | 10000-12000 | 4.8 | 100-360 | 25-100 | 3.6 |
GCP-60 | 60 | 12000-15000 | 6.5 | 100-360 | 25-100 | 4.5 |
Screw bottle
Bottle in the delivery of better increase the power, so that the bottle can be according to the required speed of smooth delivery.
Chuck positioning
The chuck adopts the groove design, the bottle moves when the stability does not shift.
Mechanical clamp
hand
Adopt strong elastic bottle clamp, grasp the bottle firmly and not hurt the bottle.
Transmission links
304 stainless steel conveyor belt, safe and durable.
Fast rinse speed
After 8-10 seconds, the washing
is over and the water is con-producing PET trolled. After 4-7 seconds, the manipulator straightens the bottle and the washing speed is faster.
factory automatic juice wine spirits aluminum caps capping machine ropp capper screw sealing machine
$4,800.00 / Set
1 Set
good quality factory auto rotary bottle washing machine cleaning machine rinsing machine for jar of jam
$9,800.00 - $10,000.00 / Set
1 Set
factory auto jam sauce juice high paste viscosity liquid hot filling machine bottling machine
$8,000.00 / Set
1 Set
factory auto 5l 20Litre barrel drum bottle chemical pesticide liquid fertilizer filling machine bottling line
$5,000.00 / Set
1 Set
factory full automatic liquid wine vodka rum gin bottle filling machine bottling machine glass bottle
$7,300.00 - $7,500.00 / Set
1 Set
factory full rotary automatic liquid vodka whisky bottle filling machine wine bottling line
$2,000.00 - $60,000.00 / Set
1.0 Sets
factory auto beer glass bottle tunnel pasteurizer machine bottle sterilizing machine
$15,000.00 / Set
1 Set
FAQ
1. What is your sample service?
We can send you the video of the finished machine or you can welcome to visit our company and see the machine running in the factory. Or if we get the permission of the customer who has brought the machines from us,we can tell you our customers´ contact information,you can go to visit their factory.2. What is your after sale service?
We will send technicians overseas,commissions and operator training.Our warranty period is 12 months,in this period,we provide free parts for buyer as well as the necessary technical support.Out of warranty period,we offer free technical support and the cost of spare parts.
3. How about the spare parts?
After we finish all the things,we will offer you a spare parts list for your reference.
4. What services are there during the production?
We will cooperate with buyers and update the manufacturing process and status to buyers and we will invite buyer come to test the machine when the goods finished in our factory, if the buyer think it is ok,we will arrange shipping or we can make the testing video and send it to buyer.
5. How to customize the service?
We can design the machines according your requirements (material,power,filling type,the kinds of the bottles and so on),at the same time we will give you our professional suggestion.
We can offer free technical support and consultation,draw the factory layout.
